Abstract View

Author(s): Naman Shukla*, Dharamlal Prajapati, Sanjay Tiwari

Email(s): naman.shukla43@gmail.com

Address: School of Studies in Electronics and Photonics, Pt. Ravishankar Shukla University, Raipur-492010, C.G., India

Published In:   Volume - 34,      Issue - 1,     Year - 2021

DOI: 10.52228/JRUB.2021-34-1-8

ABSTRACT:

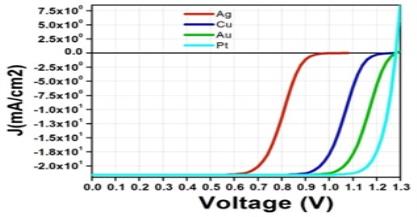

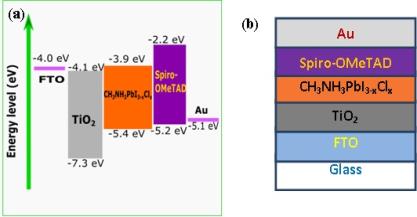

Perovskite solar cells fabricated with inexpensive & simple technology exhibits high efficiency has witnessed worldwide boom in research. The optimization of solar cell can be done through modeling and simulation. The optical and electrical modeling are the ways to optimize different parameter such as thickness, defect density, doping density and material selection for fabricating stable and highly efficient perovskite solar cells. In this research work, electrical modeling of solar cell is done throughSolar Cell Capacitance Simulator(SCAPS-1D).The architecture of the solar cell is n-i-p device structure. CH3NH3PbI3-xClx acts as light absorber active layer, TiO2 as electron transport layer and Spiro-OMeTADas hole transport layer with device structure FTO/ TiO2/ CH3NH3PbI3-xClx/ Spiro-OMeTAD/Au. The open circuit voltage Voc, short circuit current density Isc, fill factor and power conversion efficiency are 1.28 V, 21.63 mA/cm2, 0.78 and 21.53% respectively. The result showed that the optimize parameter can be applied for fabrication of the solar cell experimentally. Various metal contact materials of the anodeare also studied and analyzed.

Cite this article:
Shukla et al. (2021). Investigation on Design and Device Modeling of High Performance CH3NH3PbI3-xClx Perovskite Solar Cells. Journal of Ravishankar University (Part-B: Science), 34(1), pp. 58-63.DOI: https://doi.org/10.52228/JRUB.2021-34-1-8


Burgelman, M., Decock, K., Khelifi, S. and Abass, A. (2013). Advanced electrical simulation of thin film solar cells. Thin Solid Films. 535, 296-301.

Burgelman, M., Nollet,P. andDegrave, S. (2000). Modelling polycrystalline semiconductor solar cells. Thin Solid Films. 361-362, 527-532.

Burschka, J., Pellet, N., Moon, S.J., Baker, R.H., Gao, P., Nazeeruddin, M.K. and Grätzel, M. (2013). Sequential deposition as a route to high-performance perovskite-sensitized solar cells. Nature 499, 316–319.

Calado, P., Telford, A.M., Bryant, D., Li, X.,  Nelson, J.,  O'Regan, B.C. and Barnes, P. R.F. (2016), Evidence for ion migration in hybrid perovskite solar cells with minimal hysteresis, Nat. Commun. 7, 13831.

Eperon, G.E., Stranks, S.D., Menelaou, C., Johnston, M.B., Herz, L. M. and Snaith, H.J. (2014). Formamidinium lead trihalide: a broadly tunable perovskite for efficient planar heterojunction solar cells. Energy Environ. Sci., 7-982–988.

Filipič, M.,  Löper, P., Niesen, B., Wolf, S.D., Krč, J., Ballif, C. and Topič, M. (2015). CH3NH3PbI3 perovskite / silicon tandem solar cells: characterization based optical simulations. Opt. Express 23, A263-A278.

Giorgi, G., Fujisawa, J., Segawa, H. and Yamashita, K. (2013). Small Photocarrier Effective Masses Featuring Ambipolar Transport in Methylammonium Lead Iodide Perovskite: A Density Functional Analysis. The Journal of Physical Chemistry Letters. 4(24):4213-4216.

Green, M., Ho-Baillie, A. and Snaith, H. (2014). The emergence of perovskite solar cells. Nature Photon 8, 506–514.

Guo, Y. et al. (2019). Effects of transition metal substituents on interfacial and electronic structure of CH3NH3PbI3/ TiO2 interface: A first principles comparative study. Nanomaterials 9, 966–979.

Hima, A. Lakhdar, N., Benhaoua, B., Saadoune, A., Kemerchou, I. and Rogti, F. (2019). An optimized perovskite solar cell designs for high conversion efficiency. Superlattices and Microstructures 129, 240–246

https://www.nrel.gov/pv/assets/pdfs/best-research-cell-efficiencies.20200104.pdf

Isoe, W., Mageto, M., Maghanga, C., Mwamburi, M., Odari, V. and Awino, C. (2020). Thickness Dependence of Window Layer on CH3NH3PbI3-XClX Perovskite Solar Cell", International Journal of Photoenergy, vol. 2020, Article ID 8877744, 7 pages.

Kojima, A., Teshima, K., Shirai, Y. and Miyasaka, T. (2009). Organometal Halide Perovskites as Visible-Light Sensitizers for Photovoltaic Cells. Journal of the American Chemical Society. 131 (17): 6050–6051.

Lee, M.M., Teuscher, J., Miyasaka, T., Murakami, T.N., Snaith, H. J. (2012). Efficient Hybrid Solar Cells Based on Meso-Superstructured Organometal Halide Perovskite. Science, 338 (6107): 643–647.

Lin, Q., Armin, A.,Nagiri, R.C.R.,  Burn, P.L. and Meredith, P. (2014). Electro-optics of perovskite solar cells. Nat. Photon. 9, 106–112.

Ming, W., Yang, D., Li, T., Zhang, L. and Du, M. H. (2017). Formation and diffusion of metal impurities in perovskite solar cell material CH3NH3PbI3: Implications on solar cell degradation and choice of electrode. Adv. Sci. 5, 1700662–1700671.

National Renewable Energy Laboratory, Best research-cell efficiencies.

Shi, D., Zeng, Y. and Shen, W. (2015). Perovskite/c-Si tandem solar cell with inverted nanopyramids: realizing high efficiency by controllable light trapping. Sci Rep 5, 16504.

Tan, Z.K., Moghaddam, R.S., Lai, M.L., Docampo, P., Higler, R., Deschler, F., Price, M., Sadhanala, A., Pazos, L.M., Credgington, D., Hanusch, F., Bein, T., Snaith, H.J. and Friend, R.H. (2014). Bright light-emitting diodes based on organometal halide perovskite. Nat Nanotechnol. 9(9):687-92.

Tiwari, S., Yakhmi, J.V., Carter, S. and Scott, J.C. (2018) Optimization of Bulk Heterojunction Organic Photovoltaic Devices.

Handbook of Ecomaterials. Springer, Cham.

Yang, W.S, Park, B.W., Jung, E.H., Jeon, N.J., Kim, Y.C., Lee, D.U., Shin, S.S., Seo, J., Kim, E.K., Noh, J.H. and Seok, S.I. (2017). Iodide management in formamidinium-lead-halidebased perovskite layers for efficient solar cells. Science 356, 1376.

Yang, W.S.,Noh, J.H., Jeon, N.J.,  Kim, Y.C.,  Ryu, S.,  Seo, J. and Seok, S.I. (2015)   High-performance photovoltaic perovskite layers fabricated through intramolecular exchange, Science 348, 1234.

Zhou, H.,Chen, Q., Li, G., Luo, S., Song, T.B., Duan, H.S., Hong, Z., You, J., Liu, Y. and Yang, Y. (2014).Interface engineering of highly efficient provskite solar cells. Science, vol. 345, 542-546.
