ABSTRACT:

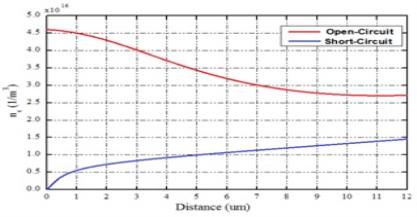

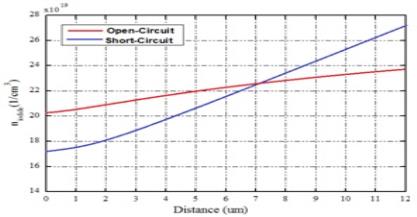

An electrical model of dye-sensitized solar cell (DSSC) is derived on continuity and transport equations for all the four charged species i.e. electrons, iodide ions (I-), triiodide ions (I3-) and cations. The device model comprises of a pseudo-homogeneous active layer, where solar photovoltaic effect including both diffusion of electrons in nanoporous TiO2 layer as well as ions in electrolyte occur, and a bulk electrolyte layer, where only ions diffuse take place. The distribution of the electrons, iodide and tri-iodide ions as function of the pseudo-homogeneous active layer thickness of the DSSC under both the open-circuit and short-circuit operation conditions were performed. Parametric studies were conducted to analyze (J–V) characteristic of the DSSC with three different sets of porosity and also for different sets of TiO2 layer thicknesses.
References
Boschloo, G. and Hagfeldt, A. (2009). Characteristics of the
iodide/triiodide redox mediator in dye-sensitized solar cells. Accounts
of chemical research, 42(11), pp.1819-1826..
Belarbi, M., Benyoucef, B., Benyoucef, A., Benouaz, T. and
Goumri-Said, S. (2015). Enhanced electrical model for dye-sensitized solar cell
characterization. Solar Energy, 122, pp.700-711.
Ferber, J., Stangl, R. and Luther, J. (1998). An electrical
model of the dye-sensitized solar cell. Solar Energy Materials and
Solar Cells, 53(1-2), pp.29-54.
Ferber, J. and Luther, J., (2001). Modeling of photovoltage
and photocurrent in dye-sensitized titanium dioxide solar cells. The
Journal of Physical Chemistry B, 105(21), pp.4895-4903.
Hagfeldt, A. and Graetzel, M. (1995). Light-induced redox
reactions in nanocrystalline systems. Chemical Reviews, 95(1),
pp.49-68.
Ito, S., Murakami, T.N., Comte, P., Liska, P., Grätzel, C.,
Nazeeruddin, M.K. and Grätzel, M., (2008). Fabrication of thin film dye
sensitized solar cells with solar to electric power conversion efficiency over
10%. Thin solid films, 516(14), pp.4613-4619.
Katoh, R. and Furube, A., (2014). Electron injection
efficiency in dye-sensitized solar cells. Journal of Photochemistry and
Photobiology C: Photochemistry Reviews, 20, pp.1-16.
Manouchehri, S., Zahmatkesh, J. and Yousefi, M.H. (2018).
Two-dimensional optical fiber-based dye-sensitized solar cell simulation: the
effect of different electrodes and dyes. Journal of Computational
Electronics, 17(1), pp.329-336.
Ni, M., Leung, M.K., Leung, D.Y. and Sumathy, K. (2006). An
analytical study of the porosity effect on dye-sensitized solar cell
performance. Solar Energy Materials and Solar Cells, 90(9),
pp.1331-1344.
Oda, T., Tanaka, S. and Hayase, S. (2006). Differences in
characteristics of dye-sensitized solar cells containing acetonitrile and ionic
liquid-based electrolytes studied using a novel model. Solar energy
materials and solar cells, 90(16), pp.2696-2709..
Papageorgiou, N., Liska, P., Kay, A. and Grätzel, M. (1999).
Mediator transport in multilayer nanocrystalline photoelectrochemical cell
configurations. Journal of the Electrochemical Society, 146(3),
pp.898-907.
Soedergren, Soedergren, S.,
Hagfeldt, A., Olsson, J. and Lindquist, S.E. (1994). Theoretical models for the
action spectrum and the current-voltage characteristics of microporous
semiconductor films in photoelectrochemical cells. The Journal of
Physical Chemistry, 98(21), pp.5552-5556.
Usami, A. and Ozaki, H. (2001).
Computer simulations of charge transport in dye-sensitized nanocrystalline
photovoltaic cells. The Journal of Physical Chemistry B, 105(20),
pp.4577-4583.
Vignati, S., 2012. Solutions
for indoor light energy harvesting.
Villanueva, J., Anta, J.A.,
Guillén, E. and Oskam, G. (2009). Numerical simulation of the current− voltage
curve in dye-sensitized solar cells. The Journal of Physical Chemistry
C, 113(45), pp.19722-19731.
